Insitei2 is a user-managed monitoring system, that enables you to remotely self-monitor your apartment, home, office or any mobile asset. It has numerous industry -specific capabilities that allow it to monitor Data Centers, Industrial devices,Marine, liquid levels, pressures, voltages, tower lighting, oilfield equipment and too many other applications to list. By utilizing SMS text and any GSM cellular network, Insite can monitor temperatures, voltages, and switch states, as well as control switch circuits remotely. It can also deliver telemetry readings, and can track vehicles, aircraft, yachts or any mobile asset, using its built-in GPS receiver.

Advanced GSM quad band cellular phone capability that works on worldwide GSM bands (850 MHz, 1900MHz, 900 MHz, 1800 MHz.) Fully programmable 92 number phone book with additional 8 call programmable escalations. This allows you to program up to four phone numbers for each device function. These four numbers can be sent messages whenever a switch comes ON and a different four numbers whenever that same switch goes OFF. You can then program Insite to wait a set period before calling the next of up to eight additional escalation numbers.

All messages sent for device alarms are pre-set as generic factory default messages but can be simply overwritten with user-entered messages that are more contextual with events being monitored.

The Insite wireless base unit has a built-in temperature sensor with user-set upper and lower limit settings. These can be set to report high, low and in-band temperature conditions. Use this to monitor your holiday home in the snow country or warehouse HVAC system remotely. The Insite i2 also stores the maximum and minimum recorded temperature over a recording period that you can set.

The Insite base unit also has built-in under-volt detection. This can let you know if power goes out in your home, office, factory or yacht. It will also notify you when power is restored.

Insite provides eight switch contact inputs that alarm on any change in switch state.
Any device that has a contact output or a suitable signal voltage, can be connected to these inputs and used to send a text message warning on contact closure, contact opening, or both. Four separate cell phones can be dialed for each contact opening event and a different four for each contact closure event. Remote monitoring senting unitsThat means if there is say a low Fuel-oil tank level alarm from your unattended home, a message can be sent to the fuel oil delivery service, another to you, a third to your neighbor and a forth to your email as a record. When the Oil company is refilling the oil tank, Insite can send the refilling message just to you.

The switches can be selectively armed and disarmed remotely from any wireless cell phone.

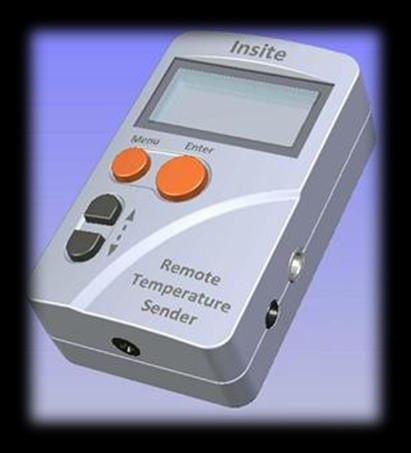

All eight switches can be connected by hard wire or wirelessly using Insite's built-in 433Mhz Wireless Personal Area Network (WiPAN). WiPAN senders can be used to provide a short-hop connection with any nearby switch contact, without running wires. A Temperature monitoring WiPAN sensor allows a probe to sense temperature and provide user-settable alarm set-points. All WiPAN sensors also provide link supervision with LOW BATTERY VOLTAGE and SENSOR ON-LINE/OFF-LINE warning messages, sent to your cell phone.

Two Telemetry INPUT Channels are provided. These allow you to connect Insite to a signal voltage, such as a battery or transducer output. When polled from a remote phone, Insite will return the numerical reading taken of the voltage or transducer output in a contextual text string or email. User calibration is provided at set-up and the units of measure can be assigned by the user. Insite then interpolates the measured input and converts it into any number range and units, as preset by the user at set-up. (more)
